450 L Mixer (857 kg wet load at 73% drum capacity, K-250 concrete mix)

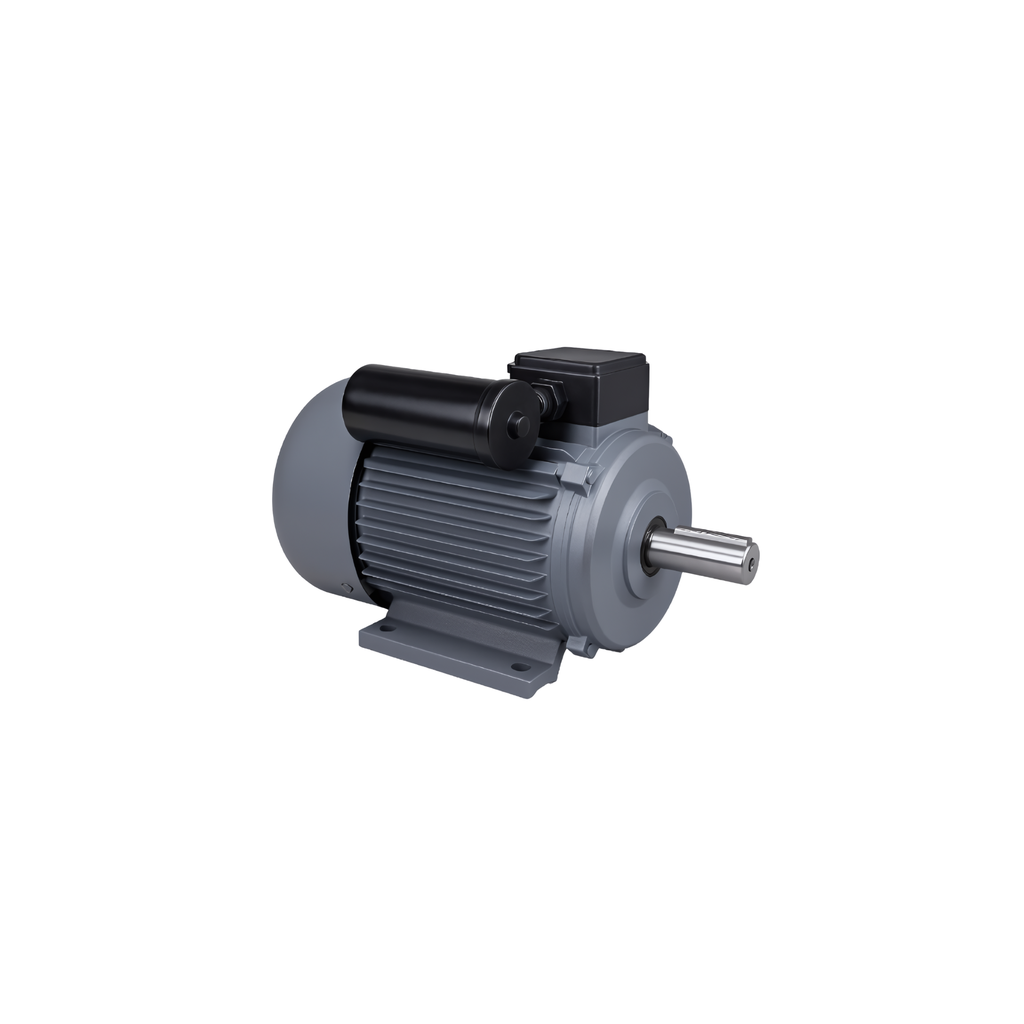

From Wipro, the FLASH-2000L (2 HP, 1450 rpm, 4-pole, 220 V) is recommended for the 450 L mixer. At 1 HP, it delivers sufficient torque when paired with the gearbox to achieve the required drum speed of ~30 rpm. This motor is well-suited for standard concrete mixes and normal duty cycles, offering reliable performance at an economical cost.
1000 L Mixer (1,701 kg wet load at 73% drum capacity, K-250 concrete mix)
From Wipro, the FLASH-3000L (3 HP, 1450 rpm, 4-pole, 220 V) is recommended for the 1000 L mixer. With nearly double the wet load compared to the 500 L mixer, a higher horsepower motor is required to maintain smooth startup and continuous rotation under load. The 3 HP motor provides ample torque reserve, ensuring durability, reduced strain on the gearbox, and consistent mixing even with stiffer concrete batches.

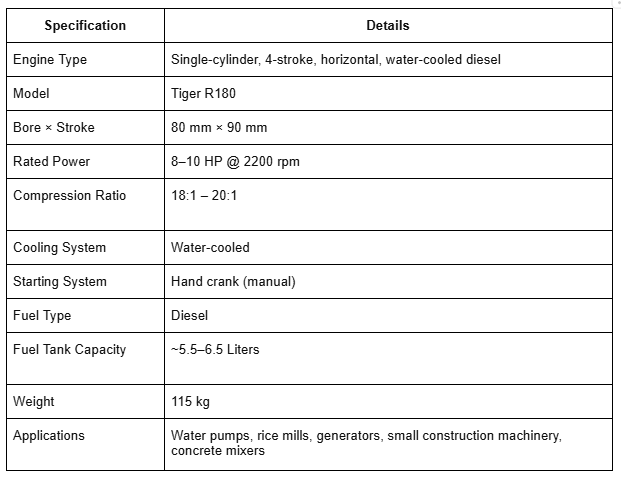

The Tiger R180 Diesel Motor is a reliable single-cylinder, 4-stroke, water-cooled engine widely used in agriculture, construction, and light industrial applications. Known for its durability and efficiency, the R180 delivers stable power output with low fuel consumption, making it suitable for powering small machinery such as water pumps, rice mills, generators, and concrete mixers. Its compact design, manual starting system, and ease of maintenance ensure dependable performance even in demanding environments.
